26KW High-Frequency Wall Saw Machine
Product Overview

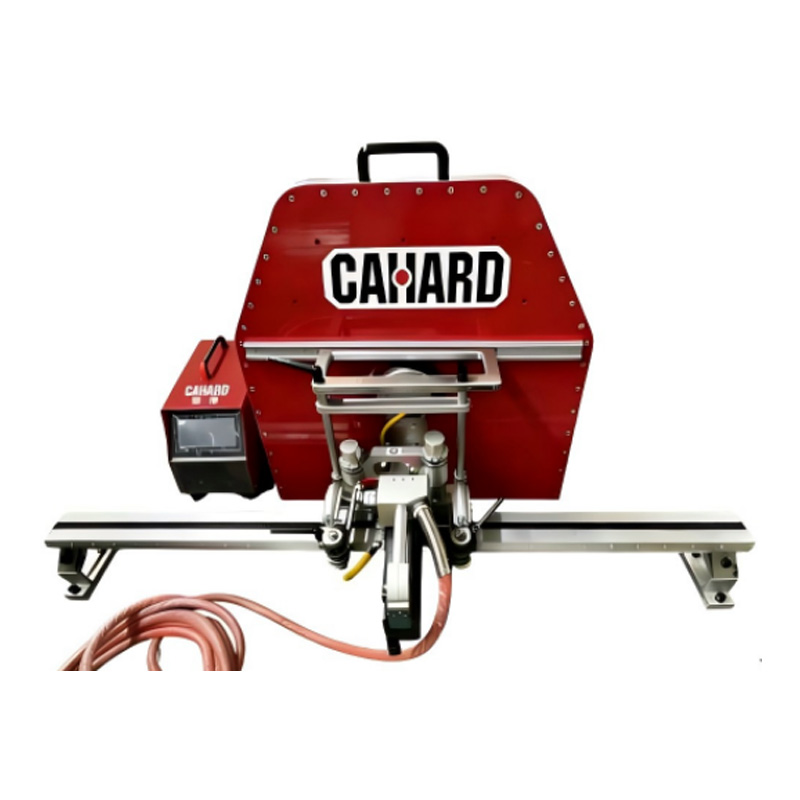

CAHARD 26KW high-frequency wall saw machine is designed for reinforced concrete wall cutting, structural openings, renovation and concrete wall removal projects.
The machine supports saw blades up to 1600 mm and a maximum cutting depth of 720 mm. It features forward and reverse rotation with stepless speed control across a 0–960 rpm range, wireless remote and touchscreen control, water cooling, a 360° rotating saw head, automatic cruise and an edge-cutting function.
High-Frequency Wall Saw Machine Applications
Reinforced Concrete Wall Cutting
Suitable for reinforced concrete wall cutting with a dedicated wall saw system.
Door & Window Opening Cutting
Suitable for cutting door and window openings in concrete walls.
Structural Opening Enlargement
Suitable for enlarging existing openings in concrete walls during structural modification projects.
Concrete Wall Removal
Suitable for concrete wall removal during renovation and structural modification projects.
Building Renovation & Structural Modification
Suitable for concrete wall cutting in building renovation and structural modification projects.
26KW High-Frequency Wall Saw Machine Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 26 KW |
| Power Source | Electric |
| Voltage | 220 V / 380 V (configuration to be confirmed) |
| Power Cable Requirement | 5-core equal-core rubber-sheathed cable, 6–10 mm² |
| Rotation / Speed Control | Forward & reverse rotation with stepless speed adjustment |
| Speed Range | 0–960 rpm |
| Cooling Method | Water cooling |
| Maximum Saw Blade Size | 1600 mm |
| Maximum Cutting Depth | 720 mm |
| Saw Blade Installation Hole Diameter | 35 / 50 / 60 mm (confirm before ordering) |
| Control Method | Wireless remote control / touchscreen control |
| Saw Head Rotation | 360° unrestricted rotation |
| Built-In Water Channel | Yes |
| Automatic Cruise | Yes |
| Edge-Cutting Function | Yes |
Power Configuration Note: Please confirm the required 220 V or 380 V configuration before ordering. The electrical setup and available rated output should also be confirmed for the selected configuration.
Blade Compatibility Note: The listed blade installation-hole sizes are 35 mm, 50 mm and 60 mm. Please confirm the required blade diameter and installation-hole size before ordering.
Standard Accessories
| Standard Accessory | Quantity |
|---|---|
| Guide Rail — 1000 mm | 1 pc |
| Guide Rail — 2000 mm | 1 pc |
| 63A Plug | 1 pc |
| Installation Tools | 1 set |
Saw blades are not listed among the standard accessories above. If a saw blade is required with the machine, please provide the required blade diameter and installation-hole size for confirmation.
26KW High-Frequency Wall Saw Machine Features
1600 mm Maximum Saw Blade
The wall saw supports saw blades up to 1600 mm for reinforced concrete wall-cutting applications.
720 mm Maximum Cutting Depth
The listed maximum cutting depth is 720 mm.
0–960 rpm Stepless Speed Control
The machine supports forward and reverse rotation with stepless speed adjustment across the listed 0–960 rpm range.
Wireless Remote & Touchscreen Control
The machine can be operated using either wireless remote control or touchscreen control.
360° Rotating Saw Head
The saw head features a built-in water channel and supports unrestricted 360° rotation.
Water Cooling
The wall saw uses water cooling during cutting.
Automatic Cruise
The machine includes an automatic cruise function.
Edge-Cutting Function
The machine includes an edge-cutting function.
35 / 50 / 60 mm Blade Installation Hole Options
The listed saw blade installation-hole diameters are 35 mm, 50 mm and 60 mm. The required size should be confirmed according to the selected blade and machine setup.
When to Choose This 26KW Wall Saw
This model is suitable when wall-saw cutting is the primary requirement and the project calls for a dedicated wall saw with up to 1600 mm blade capacity, a listed maximum cutting depth of 720 mm, variable-speed control and dual control modes.
If both wall-saw and wire-saw capability are required within one equipment platform, the 22KW combined wire saw and wall saw system can be considered instead. Final selection should take into account wall thickness, reinforcement condition, required opening size, cutting depth, blade size, blade installation-hole size, available site power and working space.
Tell Us About Your Wall Cutting Project
To help CAHARD evaluate whether this 26KW high-frequency wall saw is suitable for your project, please provide the following information when possible:
- Concrete wall thickness
- Concrete strength, if known
- Reinforcement condition
- Required cutting depth
- Opening dimensions or required cutting length
- Required saw blade diameter
- Required blade installation-hole size
- Available site power: 220 V or 380 V
- Working space and cutting direction
- Whether diamond wall saw blades are also required
- Destination country / port
- Required quantity
If wall saw blades are also required, please provide the concrete condition, reinforcement details, required blade diameter and installation-hole size so CAHARD can recommend a suitable blade configuration.
CAHARD can help determine whether this 26KW high-frequency wall saw machine is suitable for your required cutting depth, blade configuration, power setup and project conditions.
