22KW High-Frequency 2-in-1 Wall Saw & Wire Saw Machine

Product Overview

CAHARD JD-22WM is a 22KW high-frequency combined cutting system that integrates wall saw and wire saw equipment for concrete cutting projects requiring wall-saw, wire-saw or combined cutting capability.

The system operates on 380 V power with 50 / 60 Hz compatibility and is controlled by wireless remote. In wall-saw operation, it supports saw blades up to 1600 mm, with a maximum cutting depth of 720 mm and a 60 mm blade installation hole. The included high-frequency wire saw machine head, pulley and power station provide an additional wire-saw cutting option for concrete structures.

High-Frequency Wire Saw & Wall Saw System Applications

Reinforced Concrete Wall Cutting

Suitable for reinforced concrete wall cutting using the wall saw configuration.

Door & Structural Opening Cutting

Suitable for cutting door openings and structural openings in concrete walls using the wall saw configuration.

Concrete Structure Cutting Requiring Wire Saw Capability

Suitable for concrete structures where wire-saw cutting is required for the planned cutting method or cutting path.

Structural Modification

Suitable for structural modification projects where wall-saw cutting, wire-saw cutting or both methods may be required.

Building Renovation & Concrete Demolition

Suitable for building renovation and concrete demolition projects where wall-saw cutting, wire-saw cutting or both methods may be required.

JD-22WM Technical Specifications

Power Supply Note: Please confirm that a 380 V power supply is available on site and whether 50 Hz or 60 Hz is required. The specified power cable is a 10 mm² three-phase, five-core cable.

Wire Saw Specification Note: Specific wire-saw performance values, such as maximum wire linear speed, designated drive-wheel size and cutting efficiency, are not listed for this model. Wire configuration and diamond wire selection should therefore be confirmed according to the cutting material, structure dimensions, reinforcement conditions and cutting path.

Included Equipment & Accessories

Saw blades and diamond wire are not listed among the included items above. If cutting tools are required with the system, please provide the relevant cutting specifications for confirmation.

Blade Guard Note: The included cutting blade guard is listed as 900 mm, while the wall saw supports saw blades up to 1600 mm. Please confirm the required blade-guard configuration for your selected blade size before ordering.

JD-22WM High-Frequency Combined System Features

Wire Saw & Wall Saw Combined Configuration

The JD-22WM combines high-frequency wall saw and wire saw equipment in one system, providing access to both cutting methods within a single equipment configuration.

1600 mm Maximum Wall Saw Blade

The wall saw configuration supports saw blades up to 1600 mm for concrete wall cutting applications.

720 mm Maximum Wall Saw Cutting Depth

The listed maximum cutting depth in wall-saw operation is 720 mm.

60 mm Wall Saw Blade Installation Hole

The wall saw configuration uses a listed 60 mm blade installation hole.

Automatic Cutting with Infinitely Variable Speed

The system supports automatic cutting with infinitely variable speed control.

Wireless Remote Control

The JD-22WM is operated using wireless remote control.

Water Cooling

The cutting system uses water cooling during operation.

380 V / 50–60 Hz Power Configuration

The system operates on 380 V power and is listed for either 50 Hz or 60 Hz operation.

Combined Equipment Package

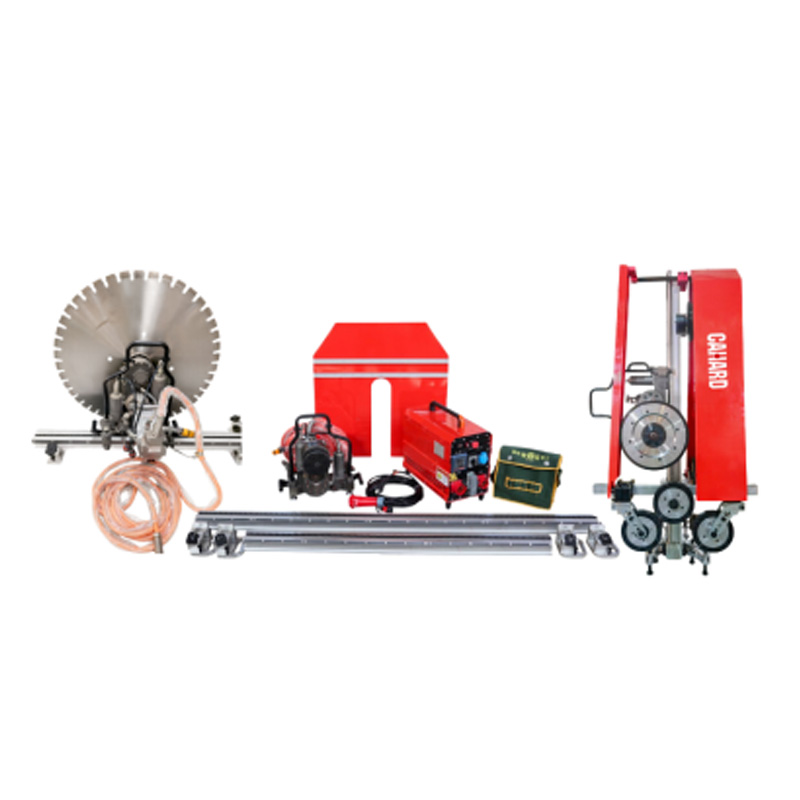

The listed configuration includes a high-frequency wire saw machine head with pulley and power station, a high-frequency wall saw machine, guide rails, rubber wheels, rail-base supports and installation accessories.

When to Choose the JD-22WM Combined System

Choose the JD-22WM when a project requires both wall-saw and wire-saw capability within one high-frequency equipment configuration.

If wall-saw cutting is the primary requirement and wire-saw capability is not needed, the dedicated 26KW high-frequency wall saw machine can be considered instead. The JD-22WM and the dedicated 26KW wall saw are different equipment configurations, so the final choice should be based on the required cutting methods and project conditions rather than motor power alone.

Final selection should take into account the cutting method, concrete strength, reinforcement condition, structure thickness, opening or cutting dimensions, required wall-saw cutting depth, blade size, diamond wire requirements, workload and site conditions.

Tell Us About Your Concrete Cutting Project

To help CAHARD evaluate whether the JD-22WM combined wire saw and wall saw system is suitable for your project, please provide the following information when possible:

• Material to be cut
• Concrete strength, if known
• Wall or structure thickness
• Opening dimensions or cutting dimensions
• Reinforcement condition
• Preferred cutting method: wall saw, wire saw or both
• Required wall-saw cutting depth
• Required saw blade diameter
• Whether diamond wire is required
• Expected cutting volume or workload
• Available 380 V site power supply
• Required frequency: 50 Hz or 60 Hz
• Working space and site access conditions
• Destination country / port
• Required quantity

If wall saw blades or diamond wire are also required, please provide the cutting material, dimensions, reinforcement condition and intended cutting method so CAHARD can recommend a suitable cutting-tool configuration.

CAHARD can help determine whether the JD-22WM 22KW high-frequency wire saw and wall saw combined system is suitable for your required cutting methods, wall-saw cutting depth, cutting-tool configuration and project conditions.
