JD-M5 15KW High-Frequency Core Drilling Machine for Concrete

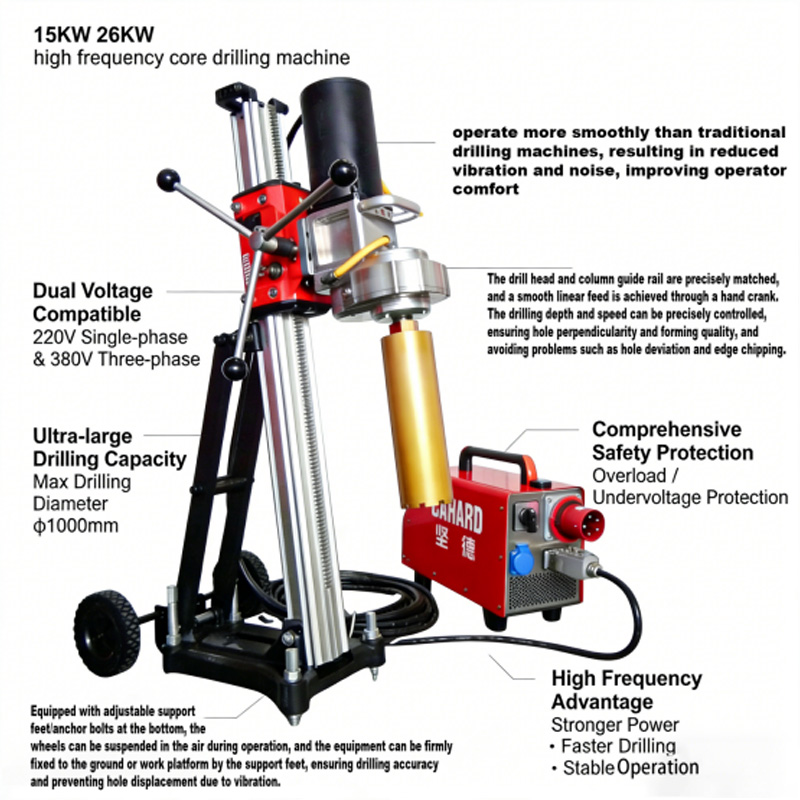

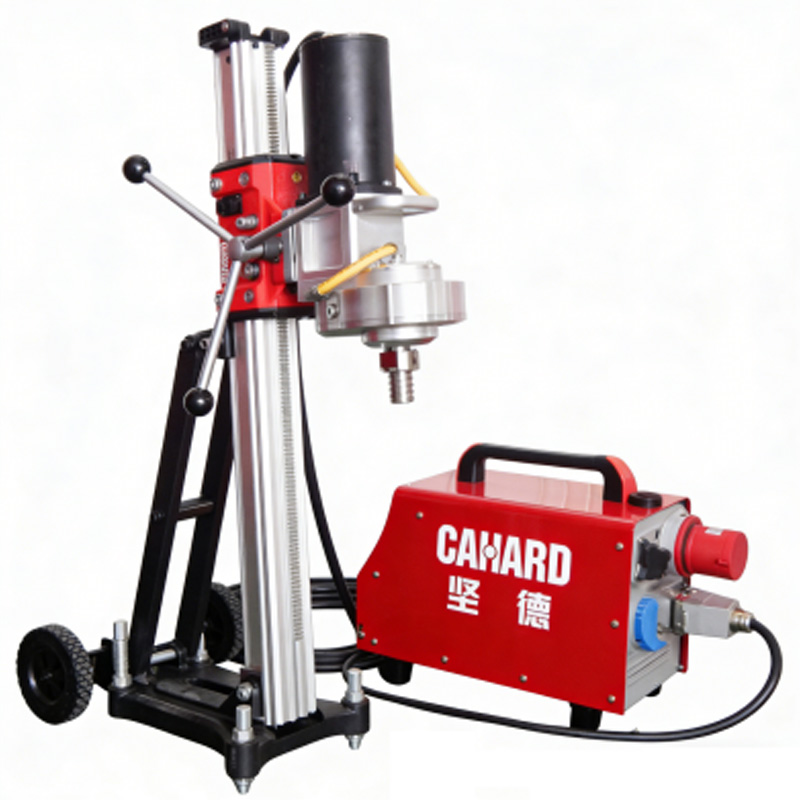

CAHARD JD-M5 is a 15KW high-frequency core drilling machine designed for concrete and reinforced concrete drilling applications. It supports standard core bit diameters from 150 to 420 mm and can be configured for extended drilling diameters up to 500 mm.
The machine combines a maximum drilling length of 1160 mm, 0–960 rpm stepless speed control, forward and reverse rotation, wireless remote control and a water-cooled main motor. Available output-shaft specifications include M22, 1-1/4" and M32. Please confirm the required connection before ordering.
Core Drilling Capacity
The standard drilling diameter range is 150–420 mm for concrete core drilling applications.
The drilling diameter can be extended up to 500 mm using the stackable configuration.
The maximum drilling length is 1160 mm. Final drilling setup should be confirmed according to the required drilling depth and core-bit configuration.
Multiple output-shaft specifications support different core-bit connection requirements.
Speed Control, Remote Operation & Cooling
Forward and reverse rotation with infinitely variable speed adjustment allows the drilling speed to be set for different core-bit diameters and drilling conditions.
Wireless remote control allows the operator to control the drilling system from a convenient position around the working area.
The main motor uses water cooling during drilling operation.
The controller box uses fan cooling as part of the machine's electrical control configuration.
Typical Applications & JD-M5 / JD-M9 Selection
- Concrete and reinforced concrete core drilling
- Wall and floor penetrations
- Pipe, utility and MEP openings
- Structural openings requiring circular drilling
- Large-diameter concrete drilling
- Deep-hole concrete drilling
Final machine and core-bit selection should be based on the required hole diameter, drilling depth, reinforcement condition, drilling orientation, expected workload, available power supply and cooling-water conditions.
JD-M5 15KW or JD-M9 26KW?
| Selection Item | JD-M5 | JD-M9 |
|---|---|---|
| Rated Power | 15 KW | 26 KW |
| Standard Core Bit Diameter | 150–420 mm | 150–420 mm |
| Extended Drilling Diameter | Up to 500 mm | Up to 650 mm |
| Maximum Drilling Length | 1160 mm | 1160 mm |
| Speed Range | 0–960 rpm | 0–960 rpm |
| Main Motor Weight | 18.5 kg | 21 kg |
Choose the JD-M5 for projects within its 15KW power class and up-to-500 mm extended drilling diameter. Consider the JD-M9 when higher rated power and an extended drilling diameter up to 650 mm are required.
Technical Specifications & Bracket Configuration
Technical Specifications
| Model | JD-M5 |
| Rated Power | 15 KW |
| Power Source | Electric |
| Voltage | 220 V / 380 V (configuration to be confirmed) |
| Frequency | 50 / 60 Hz |
| Wiring Requirement | 6 mm² three-phase five-core cable |
| Standard Core Bit Diameter | 150–420 mm |
| Extended Drilling Diameter | Up to 500 mm with stackable configuration |
| Standard Stackable Extension Module | 50 mm |
| Maximum Drilling Length | 1160 mm |
| Output Shaft | M22 / 1-1/4" / M32; required configuration to be confirmed |
| Control Method | Wireless remote control |
| Rotation | Forward / Reverse |
| Speed Control | Stepless speed control |
| Speed Range | 0–960 rpm |
| Main Motor Cooling | Water cooling |
| Controller Box Cooling | Fan cooling |
| Main Motor Size | 510 × 380 × 380 mm |
| Controller Box Size | 565 × 225 × 390 mm |
| Standard Bracket Length | 1000 mm |
| Main Motor Weight | 18.5 kg |
| Controller Box Weight | 15 kg |
| 1000 mm Bracket Weight | 33 kg |
Bracket Configuration
The standard bracket length is 1000 mm. Other bracket configurations are available as optional items and may be priced separately. Please provide the required drilling depth and site setup if a different bracket configuration is needed.
Tell Us About Your Core Drilling Project
Send us your drilling requirements and site conditions so CAHARD can help confirm whether the JD-M5 is suitable and match the required core-bit and machine configuration.
Please provide the following information when possible:
- Material and reinforcement condition
- Required hole diameter
- Required drilling depth
- Number of holes or expected workload
- Drilling orientation: vertical, horizontal or other
- Required core-bit connection / output shaft
- Available 220 V or 380 V power supply and 50 / 60 Hz frequency
- Available cooling-water supply
- Whether diamond core drill bits are required
- Required quantity and destination country / port
If diamond core drill bits are required with the machine, please provide the required drilling diameter, drilling depth and material so a suitable core-bit configuration can be matched to the project.
Send us your project conditions to receive machine recommendations, drilling-tool suggestions and a quotation.
