22KW 2-in-1 Road Cutter & Wire Saw Machine
Product Overview

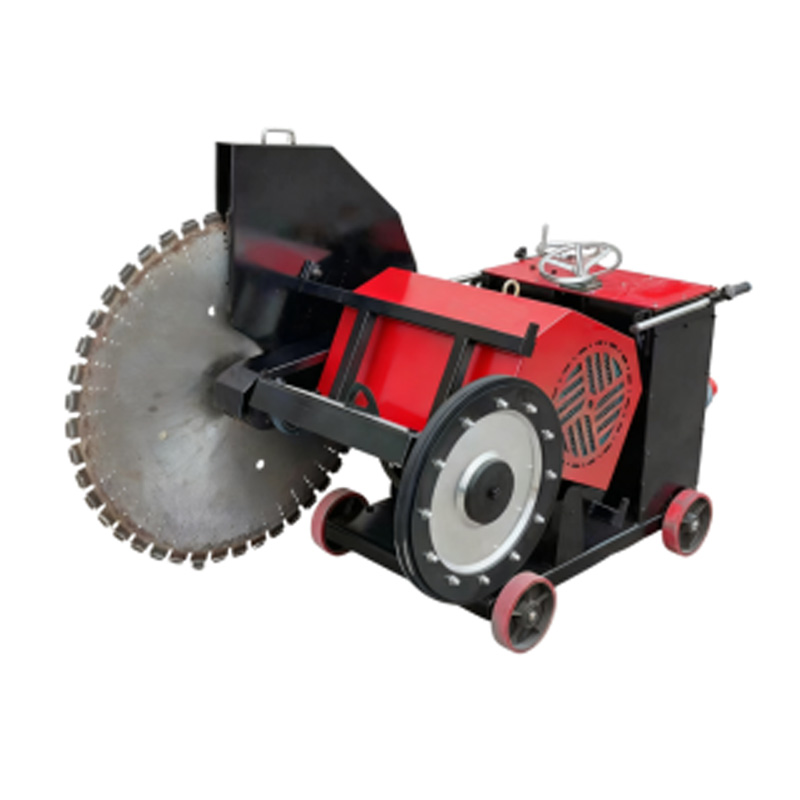

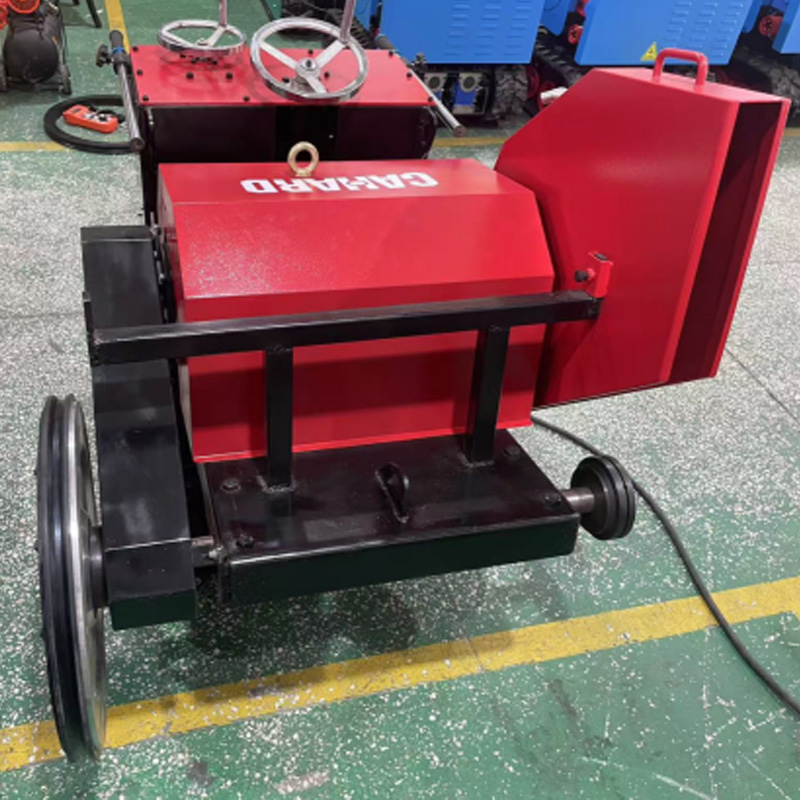

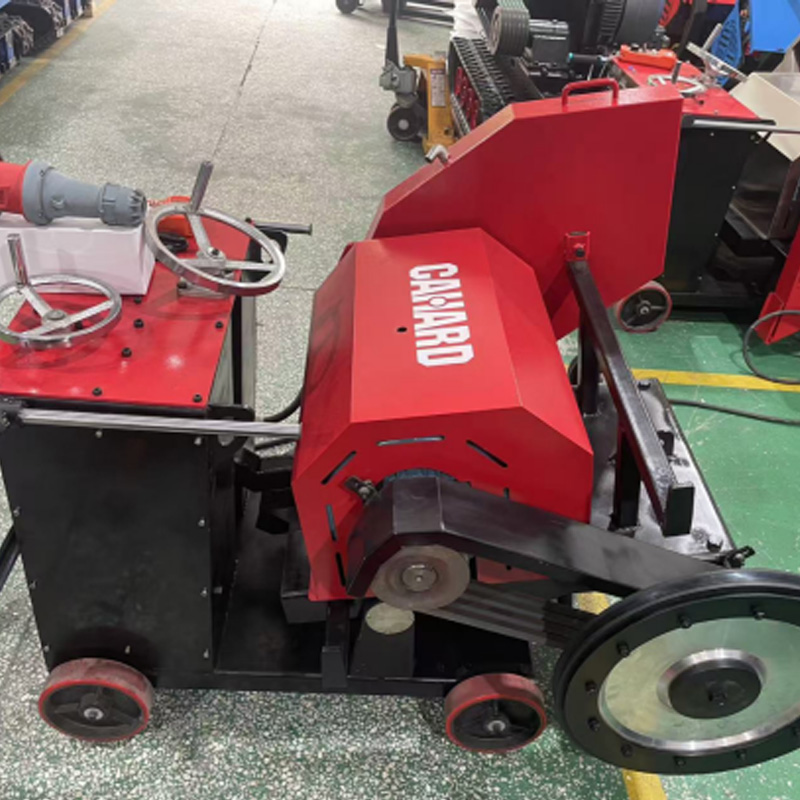

CAHARD 22KW 2-in-1 road cutter and wire saw machine combines blade cutting and wire saw capability in a single electric machine platform for concrete cutting, structural modification, renovation and demolition projects.
The machine has a rated power of 22KW and operates on a 380 V power supply. In blade-cutting mode, it supports saw blades up to 1200 mm and a maximum blade cutting depth of 500 mm. The integrated wire saw function provides an alternative cutting method for reinforced concrete structures where wire cutting is better suited to the structure or cutting path.
2-in-1 Road Cutter & Wire Saw Machine Applications
Concrete Road & Pavement Cutting
Suitable for concrete road and pavement cutting using the blade-cutting configuration.
Concrete Floor & Slab Cutting
Suitable for cutting concrete floors and slabs with the road-cutter configuration.
Reinforced Concrete Cutting
Suitable for reinforced concrete cutting where wire cutting is better suited to the structure or cutting path.
Structural Modification
Suitable for concrete cutting during structural modification projects, with blade cutting or wire cutting selected according to the structure and cutting requirements.
Concrete Renovation & Demolition
Suitable for concrete renovation and demolition work, with the cutting method selected according to the structure and project requirements.
22KW 2-in-1 Road Cutter & Wire Saw Machine Technical Specifications
| Specification | Value |
|---|---|
| Rated Power | 22 KW |
| Power Source | Electric |
| Voltage | 380 V |
| Saw Blade Installation Hole Diameter | 35 mm |
| Edge Cutting Specification | 12 cm |
| Maximum Saw Blade Size | 1200 mm |
| Maximum Blade Cutting Depth | 500 mm |
| Spindle Output Speed | 975 rpm |
| Main Motor Speed Control | Fixed speed |
| Secondary Motor Control | Forward / reverse movement with stepless speed adjustment |
| Power Cable Requirement | 10 mm² three-phase, five-core cable |
| Weight | 550 kg |
| Machine Dimensions | L1200 × W900 × H900 mm |
Site Access Note: The machine dimensions are L1200 × W900 × H900 mm. Please confirm that the site access route and available working space can accommodate the machine, and consider the listed 550 kg weight when planning transport and handling.
Reference Cutting Speed
| Reference Cutting Condition | Reference Cutting Speed |
|---|---|
| 20 cm thick concrete | 15 m/h |
The figure above is a reference value for the specified cutting condition and should not be treated as a general cutting speed for all materials or cutting modes. Actual cutting speed may vary depending on material condition, reinforcement, blade specification, cutting depth and site operating conditions.
Power Supply Note: Please confirm that a 380 V power supply is available on site and that the required 10 mm² three-phase, five-core power cable can be provided.
Standard Accessories
| Standard Accessory | Quantity |
|---|---|
| Wireless Remote Control | 1 pc |
| Explosion-Proof Plug | 1 pc |
The standard accessories listed above include the wireless remote control and explosion-proof plug. If saw blades or diamond wire are required with the machine, please provide the relevant cutting specifications for confirmation.
22KW 2-in-1 Road Cutter & Wire Saw Machine Features
Two Cutting Methods in One Machine
The 2-in-1 configuration combines blade cutting and wire saw capability in a single machine platform, allowing the cutting method to be selected according to the structure, cutting path and project requirements.
1200 mm Maximum Saw Blade
The blade-cutting system supports saw blades up to 1200 mm for concrete cutting applications.
500 mm Maximum Blade Cutting Depth
The maximum blade cutting depth is 500 mm when the machine is configured for blade cutting.
35 mm Blade Installation Hole
The saw blade installation hole diameter is 35 mm.
12 cm Edge Cutting Specification
The machine includes an edge-cutting function with a listed specification of 12 cm.
Fixed-Speed Main Motor
The main motor operates at a fixed speed.
Stepless Secondary Motor Control
The secondary motor supports forward and reverse movement with stepless speed adjustment.
Integrated Wire Saw Capability
The integrated wire saw function provides an additional cutting option for concrete cutting and demolition projects where wire cutting is better suited to the structure or cutting path. Diamond wire selection should be matched to the cutting material, structure dimensions and reinforcement conditions.
When to Choose This 2-in-1 Machine
This model is suitable when both blade cutting and wire saw capability are required, or when one machine platform is preferred for handling different concrete cutting tasks.
The cutting method should be selected according to the structure, required cutting depth and project conditions. If crawler-based machine travel is required on site, a crawler-type 2-in-1 road cutter and wire saw configuration should be considered instead.
Tell Us About Your Concrete Cutting Project
To help CAHARD evaluate whether this 2-in-1 configuration is suitable for your project, please provide the following information when possible:
- Material to be cut
- Cutting application: road, pavement, floor, slab or structural concrete
- Concrete thickness
- Reinforcement condition
- Required cutting depth
- Preferred cutting method: blade cutting, wire saw or both
- Expected daily cutting workload
- Available site power supply
- Available working space and site access conditions
- Saw blade specification, if already selected
- Diamond wire specification, if already selected
- Destination country / port
- Required quantity
If saw blades or diamond wire are also required, please provide the cutting material, thickness and reinforcement details so CAHARD can recommend a suitable cutting-tool configuration.
CAHARD can help determine whether this 22KW 2-in-1 road cutter and wire saw machine is suitable for your required cutting methods, cutting depth, workload and site conditions.
